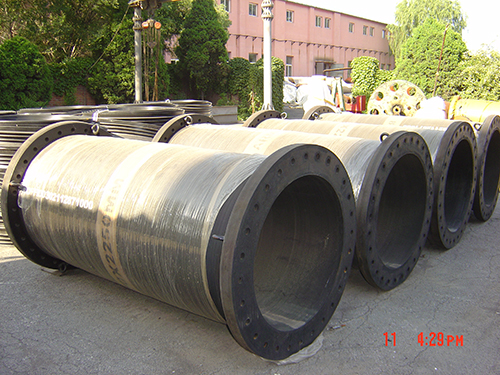

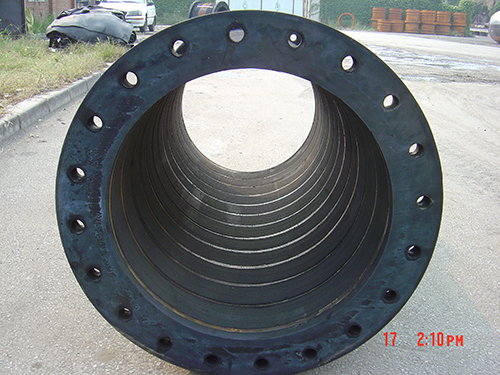

Armored Dredging Discharge Hose
Inner diameters up to 1300mm, various lengths and pressure ranges. Pipe wall thickness range: from 15mm up to 100mm. Abrasion-resistant and bending –resistant. It is convenient to install, flexible to use and safe. Working angle: 0° to 45 °. working temperature: -20°C to 50 °C
Applications:
Armoured discharge hoses are used on dredging line, suitable for transporting sharp, large and heavy stuff such as coral reef, grit and weathered rock. With build-in wear resistance metal, inner layer have good performance of wear and flexing resistance.
Specifications can be designed by customer requirements.
Features:
Inner diameters up to 1300mm, various lengths and pressure ranges.
Pipe wall thickness range: from 15mm up to 100mm.
Abrasion-resistant and bending –resistant.
It is convenient to install, flexible to use and safe.
Working angle: 0° to 45 °
working temperature: -20°C to 50 °C
Specifications:
Hose Diameter: 200mm-1100mm
Flange diameter: 340mm-1550mm
PCD: 295mm-1410mm
Flange thickness: 25mm-65mm
Inner wall thickness: 12mm-45mm(can be customized)
Hole on flange: 8-36
Hole diameter: 22-36mm
